Die Casting Services
Get custom die-cast metal parts with quick turnaround times. Request a quote to get started today. Certified to ISO 9001:2015, ISO 13485, ISO 14001:2015, and IATF 16949:2016 standards.
Start A Die Casting Quote
Drag and drop file or click to upload
STEP | STP | SLDPRT | IPT | PRT | SAT files
- All uploads are secure and confidential.
/01
High Quality Parts
/01 High Quality Parts

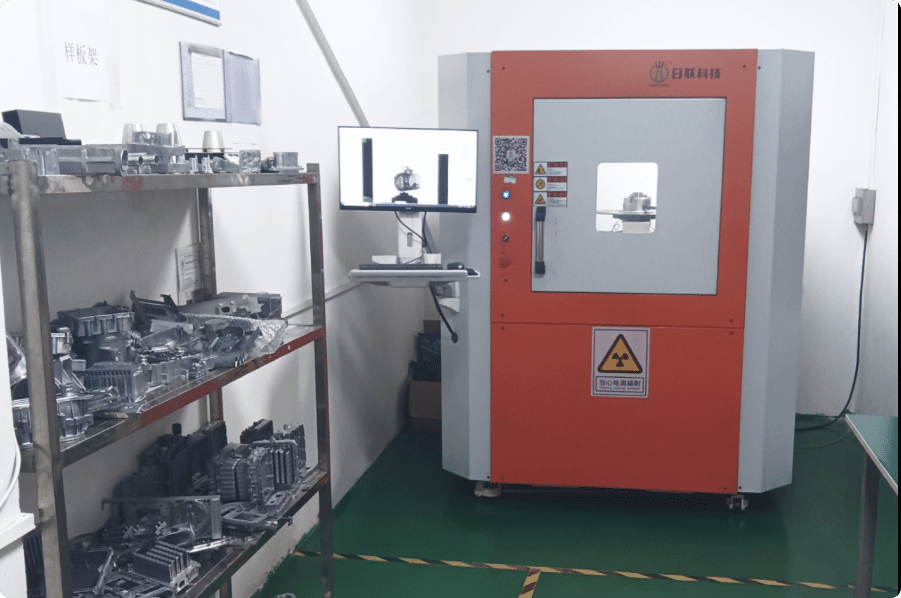

ISO 9001:2015 certified, RapidDirect delivers precision die casting backed by comprehensive quality inspections at every stage—including pre-production, in-production, first article inspection, and pre-delivery.
/02 Fast Lead Time

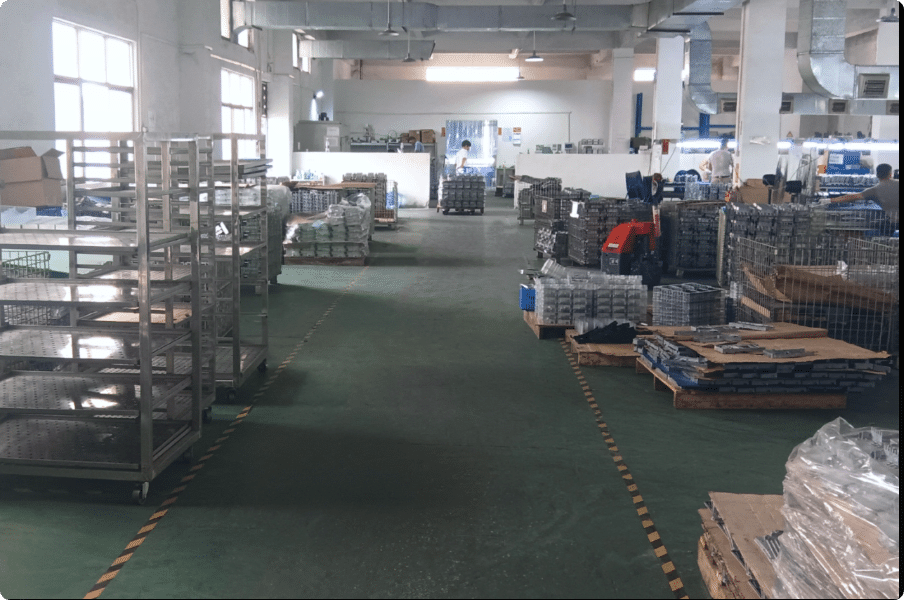

Fioria’s network of die casting manufacturers in China ensures high efficiency and fast production. Our advanced, automated facilities are equipped to handle complex, custom projects with ease.

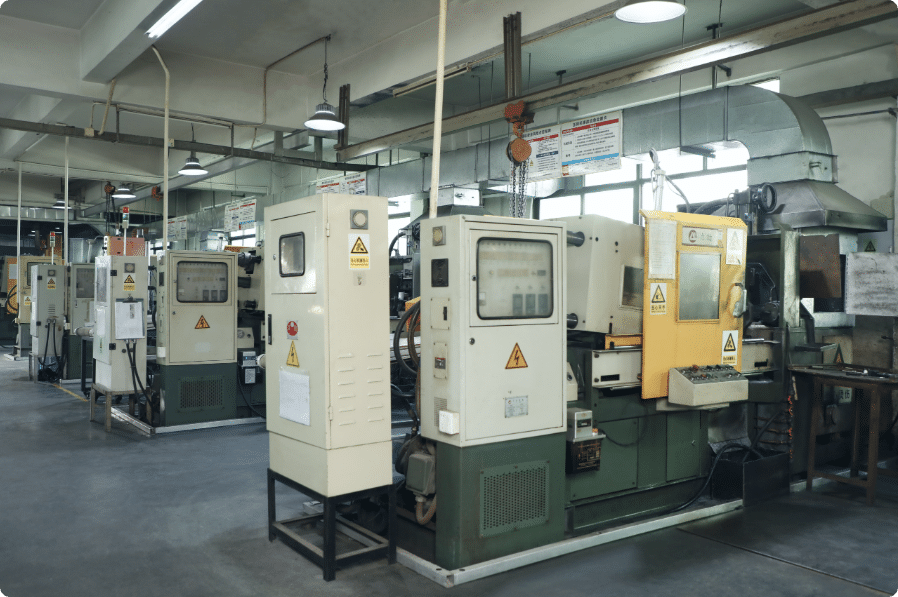

Die Casting Specialist

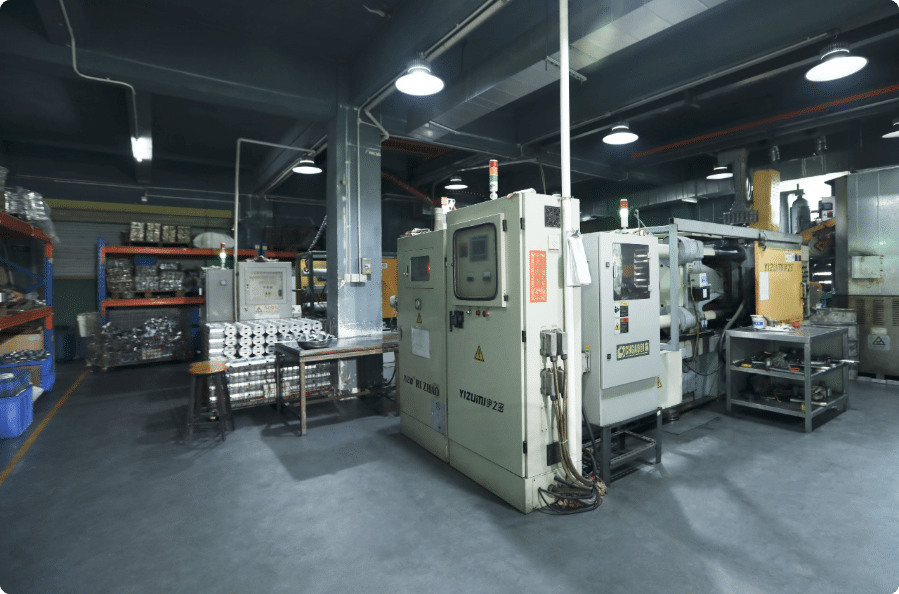

As experts in custom die casting solutions, we improve product durability while minimizing costs. Our advanced techniques and state-of-the-art machinery ensure each part meets the highest standards of quality, functionality, and aesthetics.

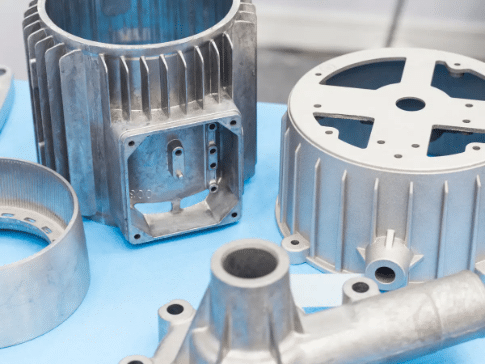

What is Die Casting?
Die casting is a highly efficient manufacturing method for producing detailed, high-volume metal parts. This process utilizes specialized molds—called dies—designed to create multiple parts at once, ensuring both consistency and productivity. Commonly used with metals like aluminum and zinc, die casting involves injecting molten metal into these molds under high pressure.
Fioria cooling and solidification preserve fine details and intricate designs, minimizing the need for extensive secondary processing. However, certain projects may still require post-machining to meet tighter tolerances.
At Fioria, our experts thoroughly evaluate each die casting project to ensure our approach aligns with your exact specifications. We focus on optimizing production flow while maintaining high standards of durability and visual quality. Through advanced casting techniques and precision machinery, we deliver parts that excel in both performance and appearance—enhancing the overall value of your final product.
Die Casting Materials
We primarily work with aluminum, zinc, magnesium, and copper—each selected for their distinct properties and advantages in die casting applications.

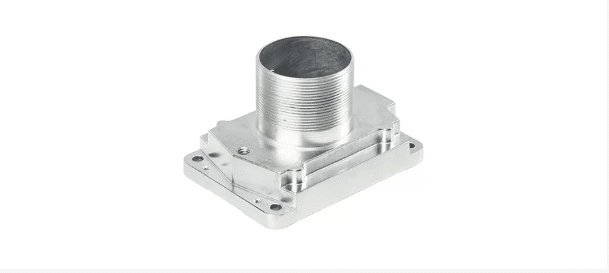

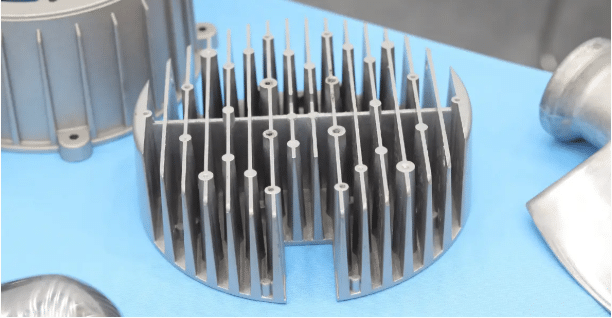

Aluminum Die Casting
Aluminum’s combination of light weight and strength makes it perfect for automotive and aerospace components that demand durability with minimal mass.
- Aluminum ADC12、ADC6、A360、A380

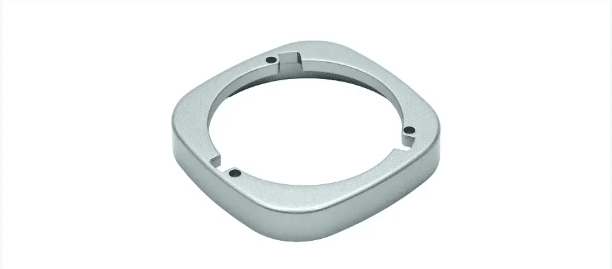

Zinc Die Casting
Renowned for its strength and durability, zinc allows for precise, high-tolerance casting—ideal for intricate designs and long-lasting components.
- Zinc Zamak 3, Zamak 5, Zamak 2, ZA8
Magnesium Die Casting
As the lightest structural metal, magnesium provides an outstanding stiffness-to-weight ratio, making it ideal for applications where weight is a critical factor.
- Magnesium AZ91D, AM60B

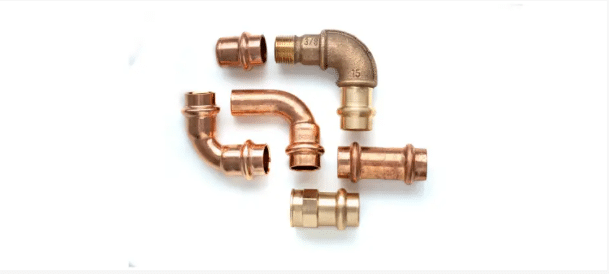

Copper Die Casting
Copper is ideal for components like heat sinks and electrical connectors due to its excellent thermal and electrical conductivity.
- Copper is ideal for components like heat sinks and electrical connectors due to its excellent thermal and electrical conductivity.
Die Casting Surface Finishing
Select from our range of surface finish options to enhance corrosion resistance and add vibrant colors to your die cast parts.

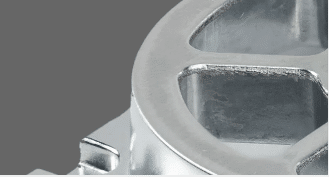

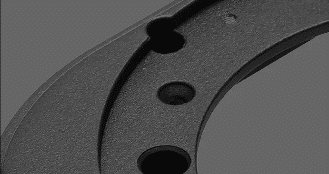

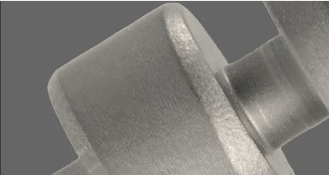

As Cast
Offers a basic, functional finish for die cast products, featuring relatively smooth surfaces with minor tool marks, ideal for non-cosmetic applications.

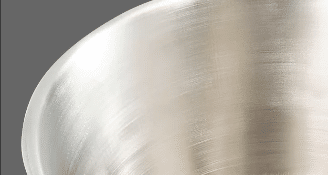

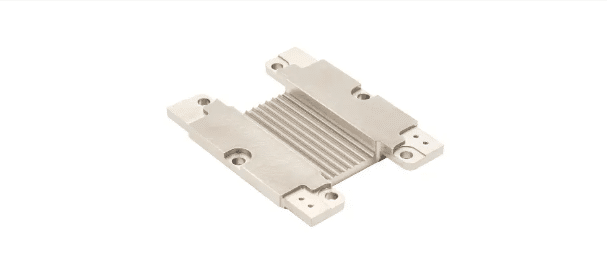

Polishing
Improves surface smoothness and shine of metal casts by reducing roughness, resulting in a visually appealing high-gloss finish.

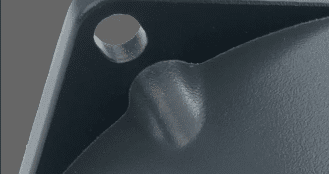

Sand Blasting
Provides a consistent matte finish by blasting the surface with fine particles, which also removes minor imperfections and prepares the surface for additional treatments.
Anodizing
Enhances corrosion resistance and wear durability of aluminum cast parts, while offering the option for coloration to improve both longevity and appearance.
Powder Coating
Forms a thick, even coating that is more durable than traditional paint, perfect for adding vibrant colors along with extra protection against corrosion and chipping.
Fioria Die Casting Capabilities
Fioria offers a transparent summary of our capabilities, showcasing key performance and quality metrics through comprehensive, detailed tables.
| Description | |
|---|---|
| Minimum Part Weight | 0.017 kg |
| Maximum Part Weight | 12 kg |
| Minimum Part Size | ∅17 mm × 4 mm |
| Maximum Part Size | 300 mm × 650 mm |
| Minimum Wall Thickness | 0.8 mm |
| Maximum Wall Thickness | 12.7 mm |
| Quality Control | ISO 9001 Certified |
| Minimum Possible Batch | 1000 pcs |
Get a Rapid Quote for Die Casting
Get a personalized die casting quote from RapidDirect in just a few clicks. Our easy-to-use online platform lets you upload your project details and quickly receive a precise, competitive quote. We specialize in high-precision die casting for both low and high-volume production, working with aluminum, zinc, and other metals. Our quotes are clear and comprehensive, giving you full visibility into pricing and lead times. Whether you need complex custom parts or standard components, RapidDirect’s fast quote system simplifies your project kickoff—backed by our dedication to quality and rapid turnaround.
Types of Die Casting Processes
Fioria offers complete die casting solutions, employing both Hot Chamber and Cold Chamber methods to accommodate various materials and meet specific project needs.

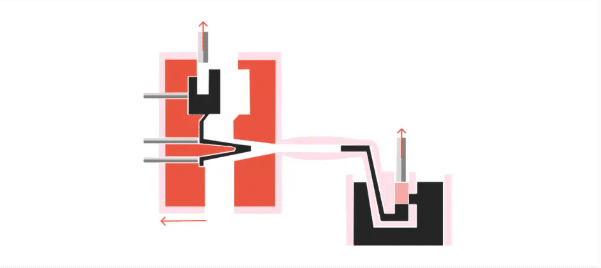

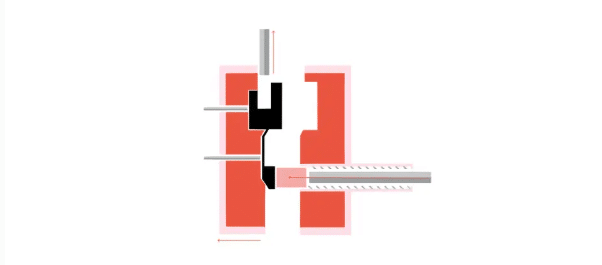

Hot Chamber Die Casting
This method is highly efficient for metals with lower melting points like zinc and magnesium. Featuring a furnace integrated with the casting machine, it enables rapid and continuous production cycles. Molten metal is injected directly from the heated chamber into the mold, making it ideal for parts that demand precise dimensional accuracy and improved mechanical properties.
Cold Chamber Die Casting
This method is ideal for metals with higher melting points, such as aluminum and copper alloys. In this process, molten metal is manually poured into the cold chamber before each injection, which helps shield the equipment from extreme heat, increasing its longevity and efficiency. It is especially well-suited for producing large, robust components with intricate designs and excellent strength.
Applications of Die Casting
Die casting is a highly adaptable manufacturing process, valued across numerous industries for its precision and dependability. Key applications include:
Automotive: Ideal for producing components such as engine blocks, gearboxes, and pistons, thanks to die casting’s ability to deliver durability and tight dimensional tolerances.
Consumer Electronics: Enables the creation of durable, intricate parts for devices like smartphones, laptops, and cameras.
Lighting: Used to manufacture complex and precise shapes for light fixtures and components, ensuring high-quality performance.
Medical Devices: Essential for producing accurate, reliable parts for medical instruments and equipment where precision and cleanliness are critical.
Industrial Machinery: Suitable for manufacturing high-strength parts capable of withstanding demanding conditions and heavy use.
Advantages of Die Casting
Die casting provides numerous key advantages, making it a preferred choice for manufacturing metal components across a wide range of industries:
High Precision and Consistency: Capable of producing complex geometries with tight tolerances, ensuring uniform quality—ideal for high-volume production.
Speed: Enables rapid manufacturing through fast injection and cooling cycles, making it highly efficient for large-scale output.
Strength and Lightweight: Delivers strong yet lightweight parts due to the dense, fine-grained structure created under high pressure.
Minimal Waste: Maximizes material efficiency with low scrap rates, often minimizing the need for additional machining processes.
Disadvantages of Die Casting
While die casting offers many advantages, it also comes with certain limitations:
High Initial Investment: The cost of dies and specialized equipment can be substantial, making it less cost-effective for low-volume production.
Material Limitations: Best suited for metals with lower melting points; casting high-melting-point metals can be more complex and less efficient.
Porosity Issues: Rapid cooling may trap air, leading to porosity that can compromise the structural integrity of the parts.
Size Constraints: Most effective for producing smaller parts, as maintaining dimensional accuracy and consistency becomes more difficult with larger components.
Post-Processing Needs: Although typically minimal, some parts may require additional machining or finishing to achieve precise tolerances or desired surface quality.
FAQs
Die casting is a manufacturing process that involves injecting molten metal into a mold cavity under high pressure. The mold, referred to as a “die,” consists of two precisely machined, hardened steel components that function similarly to an injection mold. The process unfolds as follows:
Mold Preparation: The die is coated with a lubricant to ease part removal and help regulate temperature during casting.
Molten Metal Injection: Molten metal is forced into the die at high pressures—typically between 10 and 175 megapascals (1,500 to 25,000 psi)—and maintained until solidification.
Cooling and Solidification: The metal rapidly cools and hardens within the mold, forming the final shape.
Ejection: After the part has solidified, the die halves open, and the finished casting is ejected.
Trimming: Excess material, such as gates, runners, and flash, is removed to refine the part.
This process ensures precise, high-quality metal components suitable for mass production.
When designing components for die casting, several critical factors should be taken into account to optimize both functionality and manufacturability:
Wall Thickness: Aim for uniform wall thickness throughout the part to ensure consistent cooling and solidification. This helps reduce the likelihood of defects such as warping or internal stresses. While thinner walls are advantageous for faster cooling and material efficiency, their viability depends on the chosen metal and part complexity.
Draft Angles: Integrate appropriate draft angles into the design to facilitate the smooth ejection of the part from the die. A typical draft angle ranges from 1 to 2 degrees, adjusted according to the part’s depth and geometry.
Fillets and Radii: Avoid sharp edges by incorporating fillets and rounded corners. This minimizes stress concentrations and improves the molten metal flow, reducing the risk of cracks and enhancing part integrity.
Gating System: Create an effective gating layout to guide the molten metal into the die efficiently. Well-positioned gates help minimize turbulence and reduce air entrapment, directly impacting the casting’s quality.
Venting: Ensure adequate venting is included in the mold design to allow trapped air and gases to escape during the injection phase. This prevents porosity and ensures complete cavity filling.
Simplified Geometry: Streamline the part design by avoiding unnecessary undercuts and overly complex features. Simplification reduces tooling costs, shortens lead times, and improves overall process efficiency.
By addressing these elements early in the design phase, you can enhance both the quality and cost-effectiveness of die cast parts.
In die casting, vibrations refer to mechanical oscillations occurring within the machines and molds during the process.
Vacuum Pressure Casting: This technique creates a vacuum inside the mold cavity to reduce air entrapment and porosity. Vibrations can disrupt the vacuum environment, causing defects in the finished part.
Low Pressure Casting: Molten metal is introduced into the mold under low pressure. Vibrations in this process can disturb the steady flow of metal, negatively affecting the uniformity and quality of the casting.
Semi-Solid Die Casting: Semi-solid metal is injected into the mold in this method. Vibrations can impact the thixotropic behavior of the metal, altering the fill pattern and the final part’s characteristics.
Squeeze Die Casting: After the mold is initially filled, additional pressure is applied to improve density and mechanical strength. Vibrations during this stage may cause uneven pressure distribution, leading to inconsistencies in the casting.
The lead time for producing die cast tooling typically ranges from 2 to 12 weeks. This period begins with the initial design phase, where the part concept is developed and specifications are defined, and continues until the mold is fully completed. Factors such as the part’s design complexity, the selected casting metal, and the required precision for the final product greatly affect the tooling timeline. After machining, the mold undergoes thorough testing to verify quality standards. Any necessary adjustments or modifications to address defects or enhance performance can extend the overall lead time. Clear and ongoing communication between the manufacturing team and the client is crucial to streamline the process and ensure production deadlines are met.
Die casting is a precision manufacturing method capable of achieving very tight tolerances, making it well-suited for complex, high-volume parts. Typically, tolerances depend on the part’s size, the metal used, and the specific casting technique. For standard sizes, tolerances generally range from ±0.1 mm for smaller dimensions under 25 mm, up to ±0.5 mm for dimensions as large as 250 mm. Even tighter tolerances, down to ±0.02 mm, can be attained through additional post-machining processes.
Material selection also significantly impacts tolerance, as metals like aluminum and zinc alloys exhibit different shrinkage rates and mechanical properties that affect final dimensional accuracy. Advanced die casting methods such as vacuum casting or squeeze casting can further improve tolerance control by reducing porosity and enhancing the metal’s structural integrity.
Yes, post-machining of die cast parts is not only feasible but often essential to achieve the required precision and surface quality that die casting alone may not deliver. Post-machining enables tighter tolerances and smoother finishes, which are vital for both high-performance and aesthetic demands. Common post-machining techniques include drilling, milling, and CNC machining, which refine the die cast part’s features to meet exact specifications.
Moreover, post-machining can address minor defects from the casting process, such as porosity or surface flaws. It also allows for the addition of intricate features and fine details that casting alone cannot produce. By combining die casting with post-machining, manufacturers benefit from the speed and cost-effectiveness of die casting for creating the basic shape, while achieving the precision and finish quality of CNC machining for critical dimensions.
