Injection Mold Tooling Services
Obtain precise and exceptional custom injection molds for manufacturing high-quality plastic parts with a tight tolerance of 0.02 mm.
/01 High Quality Parts
As an ISO-certified company, our standard tolerances follow the ISO 2768 guidelines. We provide a variety of injection mold tooling tolerances to suit your needs. Depending on your design, we can achieve tight tolerances as precise as ±0.02mm.
/02 Fast Lead Time
With certified domestic factories and a robust supply chain system, we speed up the product development cycle and ensure the production of your injection molded parts is completed as quickly as possible.
/03 Engineering Support
Extensive expertise across a wide range of molds and products enables us to support your business by offering advice and solutions to help you achieve your goals.
What is Tooling in Injection Molding?
Bring your injection molded parts to life with the most innovative approach. At Fioria, we provide custom injection molds designed to ensure the success of your projects. We collaborate closely with you to understand the unique requirements of your project and create a highly accurate plastic injection mold tailored to your specifications. Our skilled technicians expertly manage every complexity in the mold-making process.
Our flexibility allows us to produce both prototype tools and production molds at competitive prices. With exceptionally fast lead times, we streamline production to help you get your products to market sooner. Ready to elevate your plastic part production? Fioria is here to support you every step of the way.
Fioria Mold Tooling Services
Rapid Tooling
Easily obtain design feedback and validation with high-quality prototype tooling. Produce small batches of plastic molded parts using top-tier injection molding prototypes. We specialize in delivering prototype molds within days, enabling you to conduct functional testing and gauge market interest quickly. By utilizing cost-effective aluminum tooling, we help you minimize financial risk before committing to full-scale production.
Production Tooling
We manufacture high-quality production molds designed for large-scale plastic part manufacturing. Using high-strength, durable tool steel, our production tooling is built to produce hundreds of thousands of parts. We also offer flexibility in material selection and construction methods to meet your specific requirements.
Types of Injection Molds
We provide a wide range of injection mold tooling options tailored to your specifications and applications. Whether you need prototype molds, production molds, or export molds, Fioria is your trusted partner.

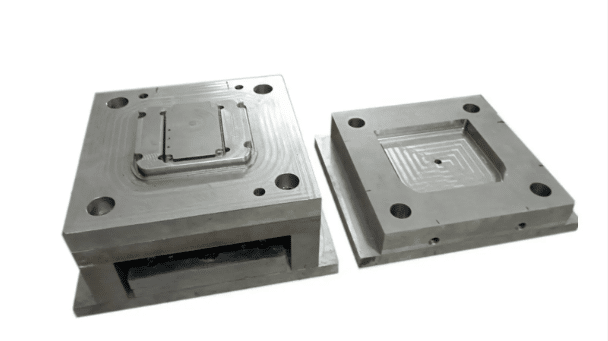

Single Cavity Mold
Achieve efficient low-volume plastic part production with high-quality single-cavity injection molds. These cost-effective tooling solutions offer greater control over the plastic manufacturing process.

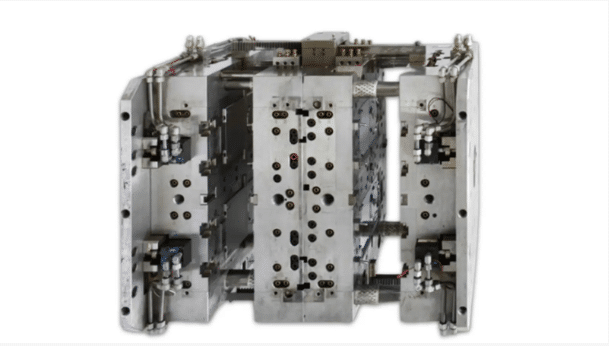

Multi Cavity Mold
Efficiently produce multiple plastic molded parts using high-quality multi-cavity molds. Our multi-cavity injection molds maximize cycle time efficiency and reduce the cost per unit. With increased productivity, you can generate large quantities of parts with each cycle.

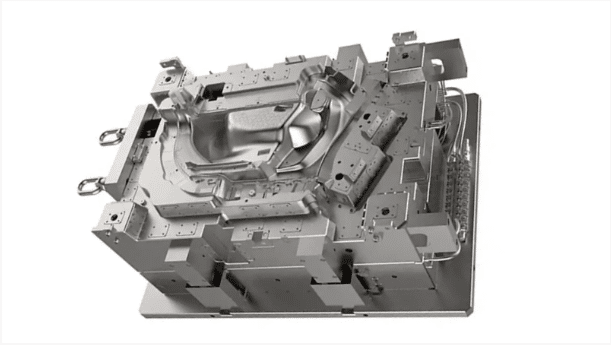

Stack Mold
Boost the output of your injection molding process with advanced stack molds. Fioria provides high-performance stack mold tooling that enhances molding efficiency and lowers overall part costs. We can design stack molds with equal or varying numbers of cavities on each parting surface, enabling the production of multi-component assemblies in a single cycle.
2K Injection Mold
Cost-effective and efficient custom injection molding solution for processing two different plastic materials. Our 2K injection mold tooling enables the seamless integration of soft and hard plastics into a single product. Reduce costs by producing customized parts and combining multiple assembly steps into one streamlined molding process.
Materials for Injection Mold
Tool Steel
Before starting low- or high-volume injection molding production, high-tolerance CNC-machined tooling is required. Tool steel is one of the most commonly used materials for this purpose. Types: P20, H13, S7, NAK80, S136, S136H, 718, 718H, 738
Stainless Steel
Injection molds are made from steel and stainless steel, which are costly to produce. As a result, they are generally used for large-scale production. Common types include: 420, NAK80, S136, 316L, 316, 301, 303, and 304.
Aluminum
Aluminum molds are significantly more affordable than traditional steel and carbon steel injection molds. They provide faster cycle times and quicker turnaround, making them ideal for market testing. Common types include: 6061, 5052, and 7075.
Injection Molding Capabilities
At Fioria, we design and manufacture precise custom injection molds using high-quality materials. Our processes guarantee exceptional consistency and repeatability with fast lead times and competitive pricing. Every plastic injection mold we produce complies with international standards. Whether it’s a one-off project, small batch, or production tooling, we deliver durable and reliable mold tools.
| Purpose | Shot Life | Tolerance | Cost | Lead Time | |
|---|---|---|---|---|---|
| Class 105 | Prototype Testing | Under 500 cycles | ± 0.02mm | $ | 7-10 days |
| Class 104 | Low-volume Production | Under 100.000 cycles | ± 0.02mm | $$$ | 10-15 days |
| Class 103 | Low-volume Production | Under 500.000 cycles | ± 0.02mm | $$$$ | 10-15 days |
| Class 102 | Medium-volume Production | Medium-volume Production | ± 0.02mm | $$$$$ | 10-15 days |
| Class 101 | High-volume Production | Over 1,000,000 cycles | ± 0.02mm | $$$$$$ | 10-15 days |
Prototype tooling plays a crucial role in efficient product development, providing a cost-effective and fast route from design to functional prototype. Its key benefits include:
Speed to Market: Speeds up development and refinement, shortening time to launch.
Cost Efficiency: More affordable than full-scale molds, reducing upfront investment.
Design Flexibility: Enables easy adjustments based on testing feedback.
Risk Reduction: Detects production issues early, preventing costly corrections later.
Functional Testing: Supports comprehensive testing to ensure the product meets all requirements.
Add Your Heading Text Here
Advantages of Prototype Tool
Prototype tooling plays a crucial role in efficient product development, providing a cost-effective and fast route from design to functional prototype. Its key benefits include:
Speed to Market: Speeds up development and refinement, shortening time to launch.
Cost Efficiency: More affordable than full-scale molds, reducing upfront investment.
Design Flexibility: Enables easy adjustments based on testing feedback.
Risk Reduction: Detects production issues early, preventing costly corrections later.
Functional Testing: Supports comprehensive testing to ensure the product meets all requirements.
FAQs
Several factors influence mold design:
Part Design and Geometry: The shape, size, and complexity of the part being molded greatly affect the mold design. Complex geometries, intricate details, and thin walls often require specialized mold features such as additional cooling channels or advanced gating systems.
Material Selection: The type of plastic significantly impacts mold design by affecting cooling rates, shrinkage, and flow behavior. For example, polypropylene exhibits higher shrinkage, while polycarbonate demands higher mold temperatures. Additionally, the mold material must resist wear caused by abrasive or corrosive plastics.
Tolerances and Precision Requirements: High-precision parts need molds with tighter tolerances, which can complicate the design and increase manufacturing costs. Mold designers must ensure dimensional accuracy and consistency, especially for industries like automotive and medical.
Ejection System: The ejection method affects both mold design and cycle time. Systems such as ejector pins, air blasts, or stripper plates must be carefully incorporated to remove the part without causing damage.
Gate Design: The gate’s location and type (direct, pin, or edge gate) control how molten plastic enters the mold. Gate design influences the finished part’s quality by affecting flow patterns, surface finish, and cycle time.
Undercuts and Parting Lines: Parts with undercuts or complex shapes may require side actions or lifters to release the part without damage. These features add complexity and increase the cost of the mold.
Injection molding is a complex process that consists of four main stages to produce high-quality plastic parts:
Clamping: Before the material is injected, the two halves of the mold are firmly clamped together by the injection molding machine. This step is essential to keep the mold closed during injection, preventing molten plastic from leaking out.
Injection: Molten plastic is injected into the securely clamped mold under high pressure. This phase ensures the plastic fills the entire mold cavity completely while maintaining pressure to pack the material thoroughly.
Cooling: Once the mold is filled, the plastic begins to cool and solidify inside the mold cavities. Proper cooling control is necessary to avoid defects and to ensure the part retains accurate dimensions and desired mechanical properties.
Ejection: After the plastic has cooled and hardened, the mold opens, and an ejection system pushes the finished part out of the mold. The machine then prepares for the next cycle by reclamping the mold for the following part.
