What is a rapid tooling?
Rapid tooling—also known as prototype tooling, bridge tooling, soft tooling, or low-volume molds—offers a fast and cost-effective way to test products before full-scale production. Ideal for small-batch runs, rapid tooling can reduce mold costs by 60% to 80% compared to traditional mass-production molds.
It’s widely used for validating product functionality, refining designs, optimizing structures, and analyzing production costs. The insights gained during this stage are invaluable for finalizing your high-volume manufacturing strategy with confidence.
While rapid tooling typically has a shorter lifespan (around 100 to 10,000 injection cycles), it comes with significant advantages: shorter lead times (as fast as 5 to 28 days), greater flexibility for design changes, and a more agile development process.
Whether you’re testing prototypes, bridging to mass production, or fulfilling low-volume orders, rapid tooling helps reduce cost, accelerate timelines, and minimize risk—making it a smart choice across many industries.
What Can Fioria’s Rapid Tooling Bring to Your Design?
We highly recommend that our clients entrust both rapid tooling and rapid injection molding production to our integrated team. This streamlined approach enhances communication between design and manufacturing, resulting in over 30% higher product yield by perfectly aligning mold design with injection molding processes.
For clients who already have in-house molding capabilities, we also offer custom tooling-only solutions. Backed by Fioria’s advanced in-house facilities—including 5-axis CNC machines, EDM systems, and a dedicated mold fabrication workshop—our rapid molds deliver unmatched precision, speed, and reliability, making them the ideal choice for any production need.
Full In-House Control, 0 Outsourcing Risks
- Advanced 5-axis CNC, EDM unit ensure 100% in-house production. No delays or errors from third-party vendors.
- Optimize mold design and molding parameters collaboratively. No finger-pointing between external suppliers.
Precision & Longevity, Both Enhanced
- 5-axis CNC machining paired with CMM inspection achieves industry-leading ±0.02mm precision
- Extend mold lifespan to 10,000+ cycles with TiN coatings or H13 tool steel.
Transparent Pricing, No Hidden Costs
- Cost based on mold complexity (sliders, ejector pins, etc.), offering 15%-20% savings versus competitors.
- Optimize designs upfront with Design for Manufacturability (DFM) reports to minimize revisions.
When to Choose Rapid Tooling: Rapid Tooling vs. Production Tooling
Rapid tooling and production tooling are complementary solutions. Your choice should depend on product development stage, budget, and volume needs. Below is a concise comparison to guide your decision.
| Key Factor | Rapid Tooling | Production Tooling |
|---|---|---|
|
Stage |
Prototyping, low-volume batches, market testing |
Mass production (10,000+ units)
|
|
Mold Cost |
1,000−20,000 |
20,000−100,000
|
|
Lead Time |
5-28 days |
8-16 weeks
|
|
Mold Lifespan |
100-10,000 cycles |
100,000-1,000,000+ cycles
|
|
Design Flexibility |
High (easy gate/cooling adjustments) |
Low (costly modifications)
|
Typical Scenarios for Rapid Tooling:
- Testing a New Product: Test 50-500 functional prototypes within 3 weeks.
- Frequent Design Changes: Frequent adjustments (e.g., consumer electronics upgrades).
- Avoid Overstock: Produce 1,000-5,000 units to avoid overstock risks.
Typical Scenarios for Production Tooling:
- Mass production: Scale to 100,000+ units for cost efficiency.
- High precision/durability: Automotive parts or medical device molds requiring extreme longevity.
- Long-term demand: Stable orders lasting 3+ years (e.g., appliance components).
A good rapid tooling can accept multiple verifications
One
Verifications on structural design rationality
Two
Verifications and tests on strength of the parts
Three
Tests on production tooling structural design
Four
Verifications on selected materials performance
Five
Verifications on stability of mass production
Six
Other requirements before mass production
Get Tools Fast With A Click
Rapid Tooling Manufacturing Process
Through 4 steps, you can obtain a high-quality prototype tooling.
1. 3D Model Upload & DFM Review
Upload your 3D design file. Our engineers deliver a DFM report within 48 hours. They will flag issues like uneven wall thickness or insufficient draft angles.

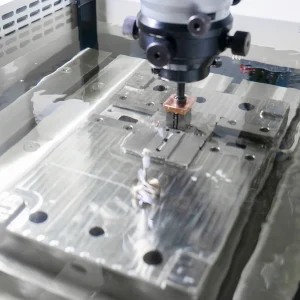

2. Mold Design & CNC/EDM Machining
Customize mold structure (parting lines, gates, cooling channels). 5-axis CNC machines and EDMs will produce core/cavity in 3-7 days with ±0.03mm precision.

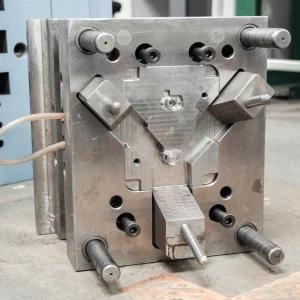

3. Surface Polishing & Assembly
Polish surfaces (mirror or texture finishes), deburr parts, and assemble molds in workshops. Critical dimensions are verified using CMM with ≤0.02mm tolerance.
4. Trial Molding & Report Delivery
Run 5-10 test shots on our injection molding machines. Clients receive a Trial Report with defect analysis, parameter adjustments, and improvement plans.
Rapid Tooling Materials
Aluminum Molds (6061/7075)
This is ideal for low-volume batches (100-5,000 parts) like consumer electronics housings or automotive prototypes. First Mold uses 5-axis CNC machining for faster turnaround (5-15 days).
Steel Molds (P20/H13)
This is built for 10,000+ cycles in demanding applications (medical devices, connectors). Enhanced with TiN coatings to resist wear and reduce downtime.

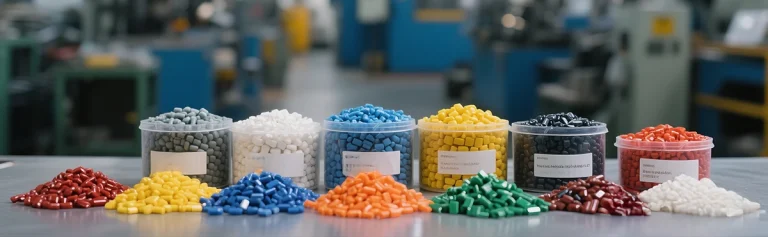

Materials for Rapid Injection Molding: What We Can Produce
Rapid injection molding relies on molds produced via rapid tooling technologies. This seamless process allows fast material testing and low-volume production.
- ABS: Durable housings (e.g., smartwatch cases).
- PP: Hinges, food containers.
- TPU: Soft grips (e.g., headphone ear pads).
- PC: Transparent covers (e.g., LED diffusers).
- POM: Gears, sliding parts.
- PEEK: Aerospace valves, chemical seals.
- Nylon: Functional prototypes (e.g., drone arms).
- PEI: Medical sterilizable trays.
- PA: Gears, bearings, structural parts
- PMMA: Light guides, lenses, displays
- PS: Disposable cutlery, labware
The application scenarios of rapid tooling
Electronics Industry
Case:
- Client Needs: Deliver 500 test units in 3 weeks, budget under $6000
- Solution: Aluminum tooling (cost: $4000) + fast-cycle molding.
- Results: Shipped in 18 days, 98% defect-free rate, saved 30% on tooling costs.
Auto Components
Case:
- Pain Point: Product launch was in 8 weeks.
- Solution: Additive manufacturing tooling + small-batch production.
- Results: Completed design-to-assembly in 6 weeks, 75% cheaper than hardened steel molds.
Healthcare Equipment
Case:
- Critical Requirements: ±0.05mm tolerance, medical-grade PC material.
- Solution: Hardened steel tooling (H13) + precision CNC machining.
- Results: 100% first-article approval, 100,000+ injection cycles lifespan.
Industrial Machinery
Case:
- Challenge: Thin-wall design (0.8mm) caused warping; 3 failed trials with standard tooling.
- Solution: Optimized cooling channel layout + 5 trial runs for parameter tuning.
- Results: Mass production yield jumped from 70% to 95%.

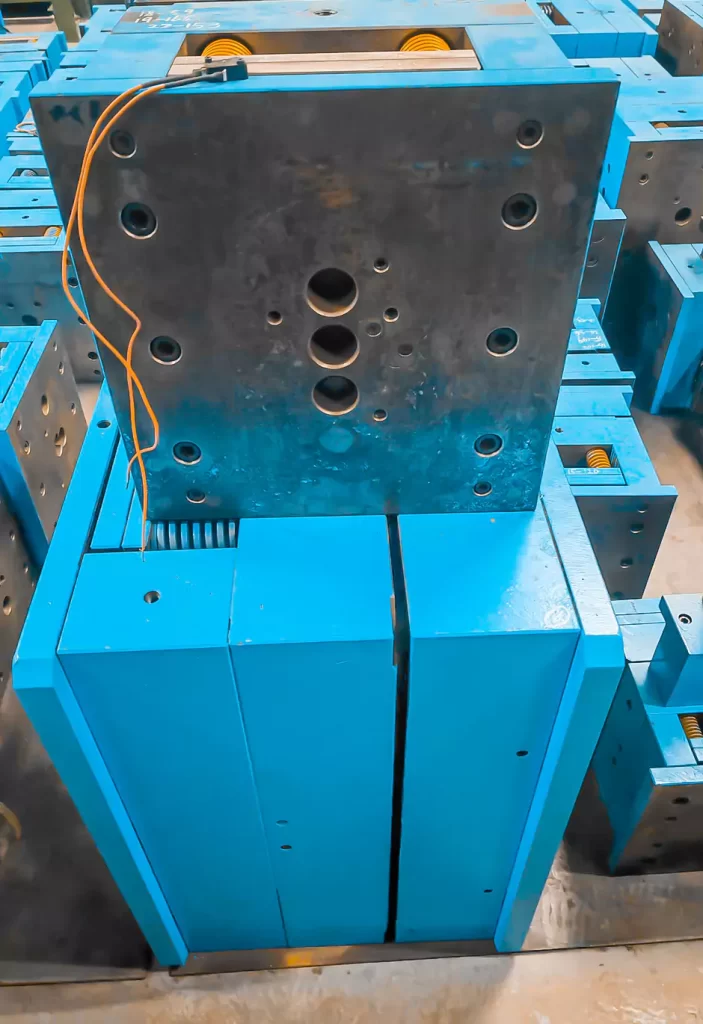

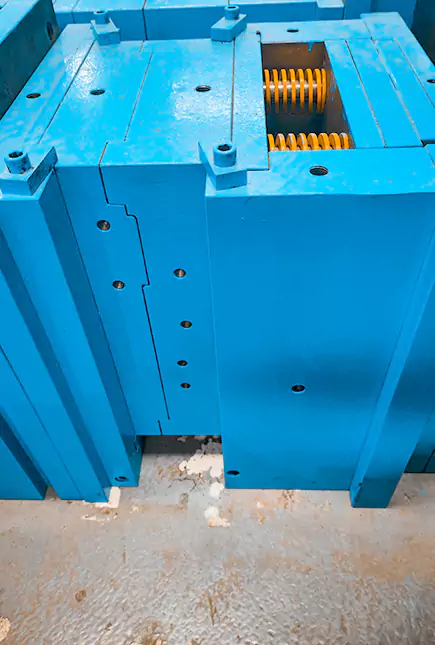

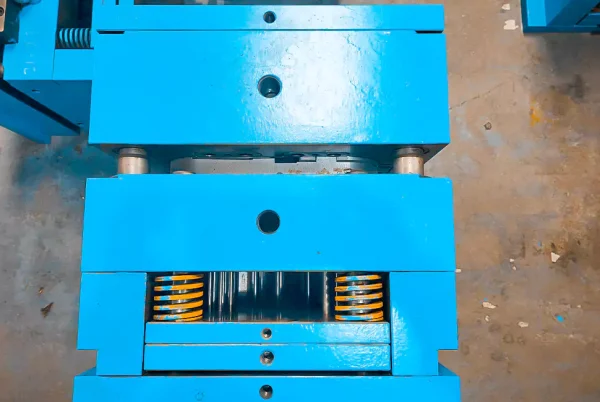

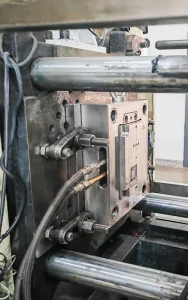

Rapid Tooling Case Gallery
Rapid Tooling FAQ
We accept: STEP (.stp), IGES (.igs), and SolidWorks (.sldprt) files.
Best choice: Use STEP files. They keep full 3D data for smooth processing.
Avoid: PNG JPG files. We need 3D files.
Need help? Send your file. We check it free in 24 hours.
Aluminum molds: 1,000-5,000 plastic parts (e.g., phone cases, 300g PP material).
Steel molds: 10,000-50,000+ cycles (e.g., medical syringe parts, PEEK material).
3D-printed molds: 50-300 cycles (e.g., silicone rubber prototypes).
Tip: Higher injection pressure (over 80MPa) reduces mold life by 20-30%.
We handle:
- Undercuts (e.g., snap-fit tabs).
- Thin walls (0.5mm thick, like drone arms).
- Micro-textures (Ra 0.8μm mirror finishes).
Solutions:
- Use 3D-printed molds (SLS/MJF technology) for ±0.15mm tolerance.
- Add side sliders to aluminum/steel molds (costs 15% extra).
Example: Made 200 nylon gears with 0.6mm teeth in 10 days.
- Asia: 1-3 days.
- Europe/USA: 3-5 days.
- Tracking link sent after shipment.
Customs help: Provide HS codes and commercial invoices.
Standard precision: ±0.05mm (for most ABS/PC parts).
High precision: ±0.02mm (steel molds with EDM finish, e.g., connector pins).
How we do it:
- Check molds with CMM machines (Mitutoyo Crysta-Apex).
- Run 5 test shots to verify dimensions.
Data: 98% of molds pass ISO 2768 medium tolerance.
