Bespoke Sheet Metal Bending Services

The bending process is a core technique in metal fabrication, involving the deformation of metal into specific shapes using applied force—most commonly through a press brake or a similar machine. This method allows for accurate shaping of sheet metal along straight lines to form profiles such as V, U, or channel shapes. Depending on project needs, bending can be performed using anything from traditional manual tools to advanced CNC (Computer Numerical Control) systems, which offer superior precision and consistency.

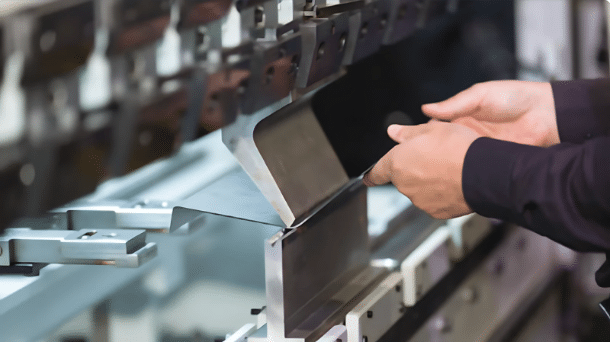

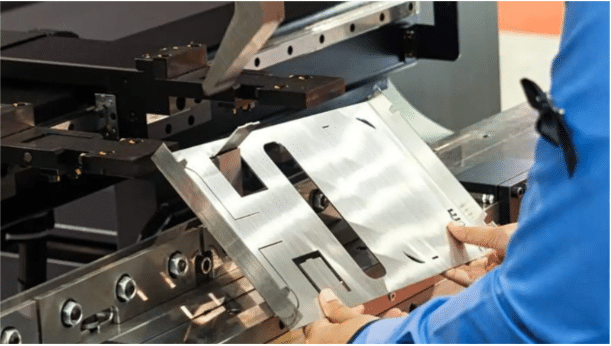

During the bending operation, a sheet of metal is positioned between a punch and a die. The punch presses the metal into the die, shaping it to match the die’s contour. Critical variables in this process include the bend angle, bend radius, and the force applied—each of which can be controlled to achieve the desired shape without significantly changing the material’s thickness.

This method is valued for its ability to produce strong, reliable components quickly and efficiently. It supports a wide range of applications—from small, intricate brackets to large, structural architectural pieces. Thanks to modern CNC technology, manufacturers can now achieve highly complex and precise bends, increasing design flexibility and accelerating production timelines.

Deciding between bending and welding depends on the unique demands of a project, including considerations such as strength, appearance, turnaround time, and cost-efficiency. Bending is often preferred for its ability to form seamless, continuous shapes, which can improve both the durability and aesthetic quality of a component. It also tends to be faster and more economical than welding, as it eliminates the need for consumables like filler materials and reduces energy consumption.

However, welding becomes essential when the project involves complex geometries or dimensions that bending alone cannot achieve. It enables the joining of different components and materials, allowing for the creation of intricate assemblies and structures. Welding also offers the high-strength joints required for rigorous applications, such as in structural frameworks and heavy-duty machinery.

The lead time for manufacturing bent sheet metal parts varies based on several key factors, including part complexity, order volume, material type, and the production facility’s workload. In general, simpler bending tasks involving standard materials can be completed swiftly—often within a few days. For typical orders with straightforward requirements, Fioria offers a turnaround time of approximately 3 to 5 business days.

For more intricate components that involve multiple bends, specialized materials, or additional finishing processes, the production timeline may be longer. Projects requiring custom tooling or detailed pre-production planning may extend lead times to several weeks. The speed and capacity of CNC bending machinery also significantly influence how quickly parts can be delivered.

Fioria also provides expedited manufacturing options for time-sensitive projects, available at an additional cost. To ensure timely delivery and minimize potential delays, it’s beneficial to engage with the service provider early during the design phase and maintain clear communication throughout the project.

Bending tolerance refers to the permissible variation from the specified dimensions that may occur during the metal bending process. These tolerances are crucial for ensuring that components fit correctly within assemblies and function as intended.

In standard sheet metal bending operations, tolerances generally fall between ±0.1 mm and ±0.5 mm. However, exact tolerance levels depend on multiple factors, including the material type, sheet thickness, and the complexity of the design. Thinner sheets, for instance, are more prone to variability due to their flexibility and the tendency to spring back slightly after bending—an effect known as springback.

With advanced CNC bending technology, it’s possible to achieve exceptionally tight tolerances by accurately controlling bend angles and positioning. For industries that demand high precision, such as aerospace and medical equipment, tolerances can be as tight as ±0.01 mm to ±0.1 mm.

At Fioria, we select the appropriate bending techniques and tooling based on your application’s tolerance requirements, ensuring each part meets the necessary precision and performance standards.

Die marks on bent metal parts are a common concern in metal fabrication, as they can affect both the appearance and surface integrity of the finished product. These marks occur when the die leaves impressions or abrasions on the metal during the bending process. Their visibility depends on several factors, including the type of metal being used, the condition of the tooling, and the specific bending method employed.

Softer metals like aluminum are particularly prone to visible die marks due to their susceptibility to surface deformation. However, this issue can be minimized through the use of properly maintained tools and protective measures such as applying films or coatings before bending. Additionally, using rubber or urethane pads as a buffer between the die and the metal surface can greatly reduce marking.

In cases where surface aesthetics are critical, post-processing treatments like sanding, polishing, or painting can effectively remove or conceal any die marks. While die marks are a potential challenge, a range of preventive and corrective techniques is available to control their impact on the final part.

Among the commonly used metals in fabrication, stainless steel is known for offering the highest resistance to bending. This is largely due to its high tensile strength and hardness, which make it significantly more difficult to deform than metals like aluminum or mild steel. Its composition—rich in chromium and nickel—enhances not only its corrosion resistance but also its stiffness and overall durability.

Because of its strength, bending stainless steel typically requires greater force, often demanding press brakes with higher tonnage. The metal’s tough nature also calls for specialized tooling and precise techniques to avoid issues such as cracking or workpiece damage during forming.

These properties make stainless steel particularly well-suited for applications that demand exceptional structural integrity and long-term durability, including medical equipment, food-grade machinery, and marine components. However, this increased resistance to bending also results in more complex processing and higher manufacturing costs.

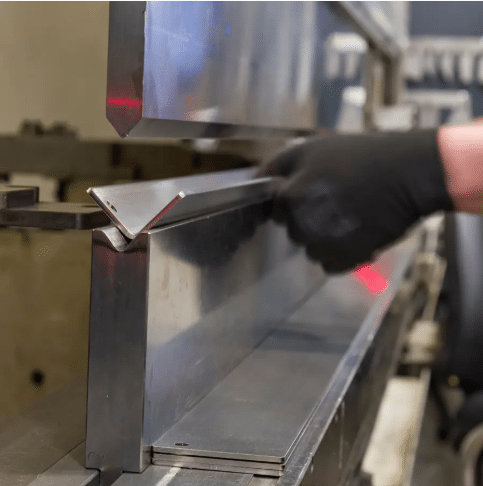

Common sheet metal bending methods include air bending, bottoming, coining, roll bending, and V-bending. Air bending shapes the metal using a punch that doesn’t fully contact the die bottom, offering flexibility in bend angles. Bottoming achieves more precise angles by pressing the material firmly into the die, while coining compresses the metal to create exact bends. Roll bending is used to form curves or circular shapes, and V-bending employs a V-shaped die to efficiently produce bends at various angles. The choice of method depends on factors such as material type, thickness, and the required bend angle to ensure optimal results.

Yes, you can request custom bend angles tailored to your specific project needs. We offer flexible bending solutions that accommodate a wide range of angles and dimensions to fit your requirements. Our team collaborates closely with you to ensure the final product precisely matches your specifications.

Fioria ensures quality by employing advanced CNC bending technology, delivering precision and consistency in every part manufactured. Our process involves thorough inspections at various stages to verify dimensional accuracy and alignment. Moreover, we follow stringent industry standards to guarantee that each bent part is durable and dependable for its intended use.
